RJ 系列 /

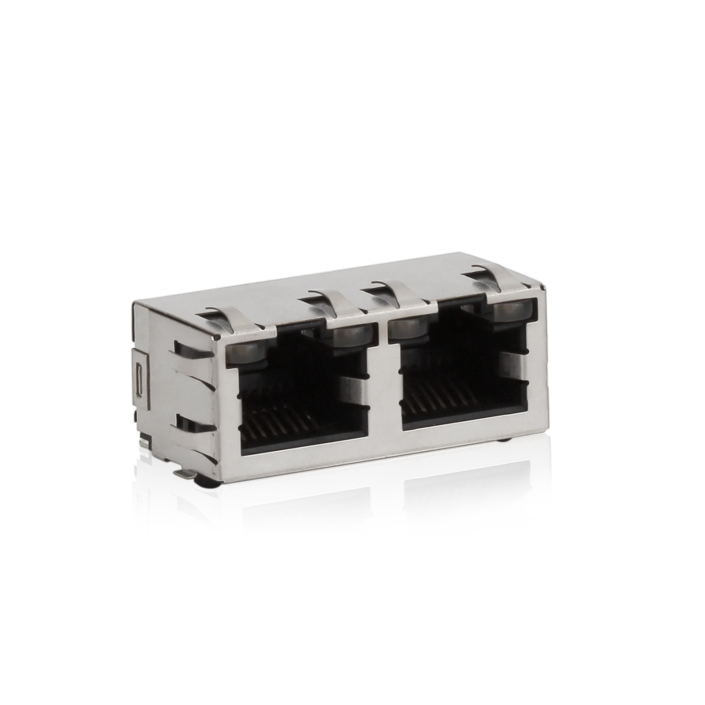

RJ 1×2
1×2
Mechanical Specifications
| Port Configuration | 1×2 |
| Shield | Metal Shielded |
| Housing Material | High Temperature Thermoplastic |
| Mounting Type | Through Hole |
| LED Option | Available |
| Packaging | Tray Packaging |
Electrical Specifications
| Rated Current | 1.5A |
| Rated Voltage | 125VAC |
| Contact Resistance | 50mΩ Max |
| Insulation Resistance | 500MΩ Min |
| Dielectric Withstanding Voltage | 1000VAC |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold over Nickel |
Environmental & Reliability
| Operating Temperature | -40°C~+85°C |
| Flammability Rating | UL94 V-0 |
| Durability | 750 Cycles Min |
| RoHS | Compliant |
