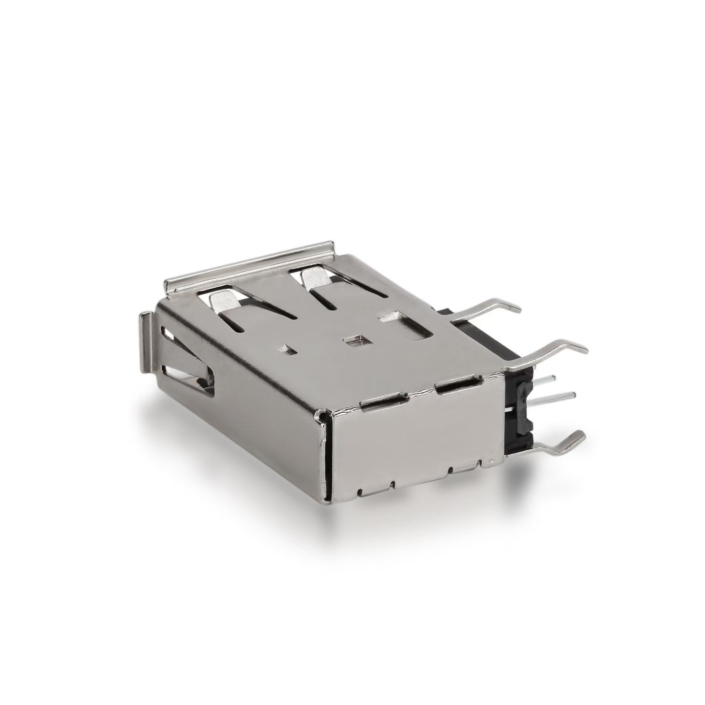

USB 直立式
USB 直立式
Mechanical Specifications
| Product Type | USB Connector (Vertical Type) |
| Housing Material | PBT |
| Shell Material | Nickel Plated Metal |
| Connector Orientation | Vertical |
| Mounting Type | DIP / Through Hole |
Electrical Specifications
| Contact Current Rating | 1 A |
| Dielectric Withstanding Voltage | AC 500V RMS |
| Insulation Resistance | 500 MΩ Min |
| Contact Resistance | 30 mΩ Max |
| Contact Plating | Gold Plating |
| Terminal Plating | Nickel + Tin |
Environmental & Reliability
| Operating Temperature | -40°C~+85°C |
| Soldering Temperature | 245°C ±5°C |
| Soldering Time | 5 ±0.5 sec |
| RoHS | Compliant |
